Physical characteristics:

• Density – one of the fundamental physical properties;
• Color – the simplest indicator that allows to make first assumptions about the oil quality;
• Appearance of liquids – one of the first indications of possible changes;
• Kinematic and dynamic viscosity – proper hightemperature viscosity can ensure ideal effect of cooling and heat dispersion of transformer oil;
• Viscosity index – allows for a better comparison of the viscosity behavior of different oils based on temperature;
• Refractive index – allows you to calculate the hydrocarbon composition of the oils;
• Content of mechanical impurities – adversely affect the dielectric properties of insulating liquids;
• Flash point – indicates oil flammability and helps to prevent possible emergency situations;
• Breakdown voltage – ensures trouble-free operation of the entire transformer isolation system;
• Dielectric dissipation factor – indicates energy that is dissipated as heat in the presence of impurities;

Physicochemical characteristics:

• Dissolved gas analysis (DGA) – can provide insights into thermal and electrical stresses sustained by power transformers;
• Water content – even small amounts significantly reduce the breakdown voltage of the oil;
• Acidity – characterizes the degree of purification from naphthenic acids, which cause corrosion of equipment;

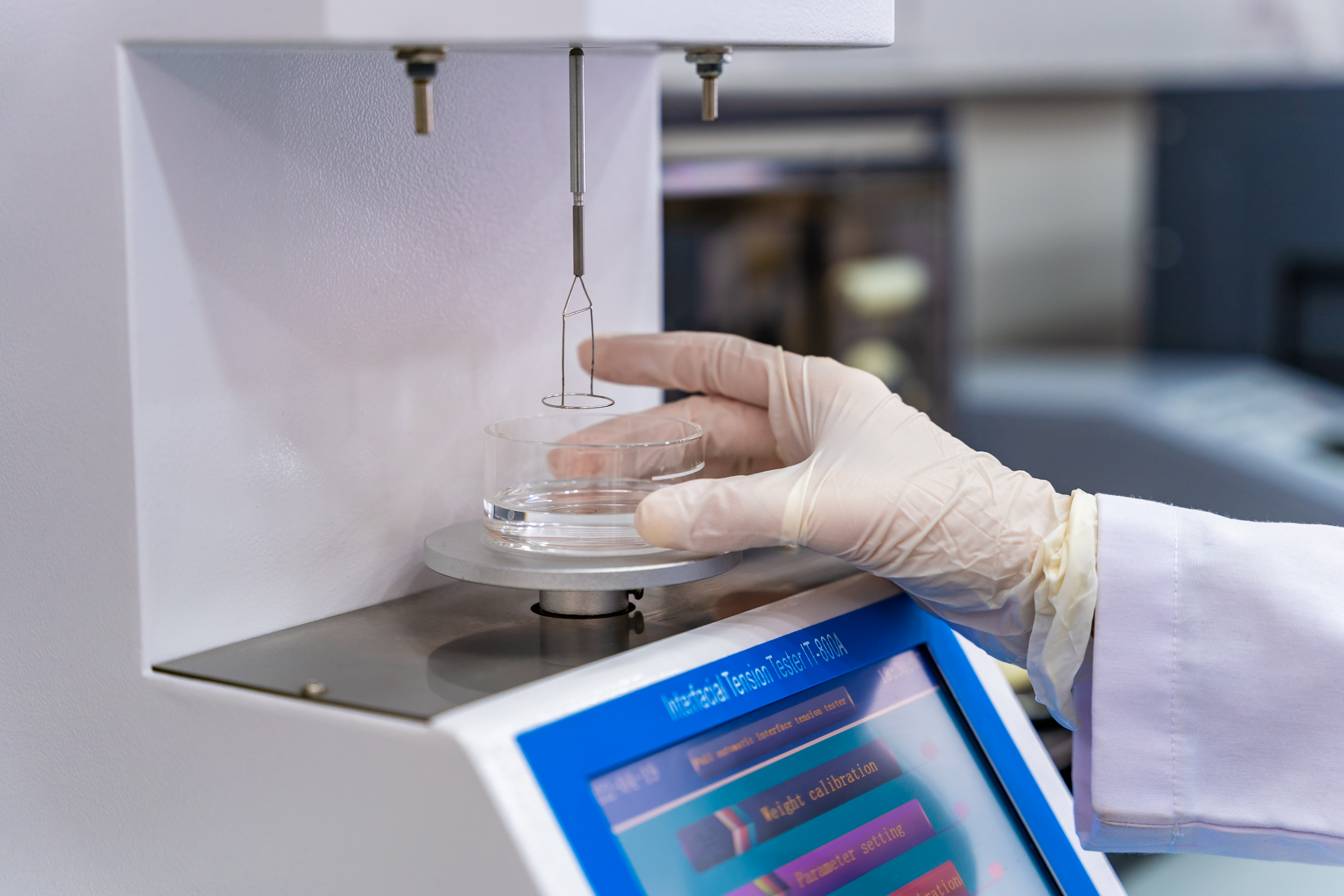

• Interfacial tension – checks whether there are soluble polar impurities in oil resulted from aging;
• Inhibitor (ionol) content – when the inhibitor content drops to 0.1%, the process of intensive aging of the oil begins;
• Sludge content – allows to identify the presence of deep aging products dissolved in oil;
• Water-soluble acids and bases – aggressive compounds that cause corrosion of metals;

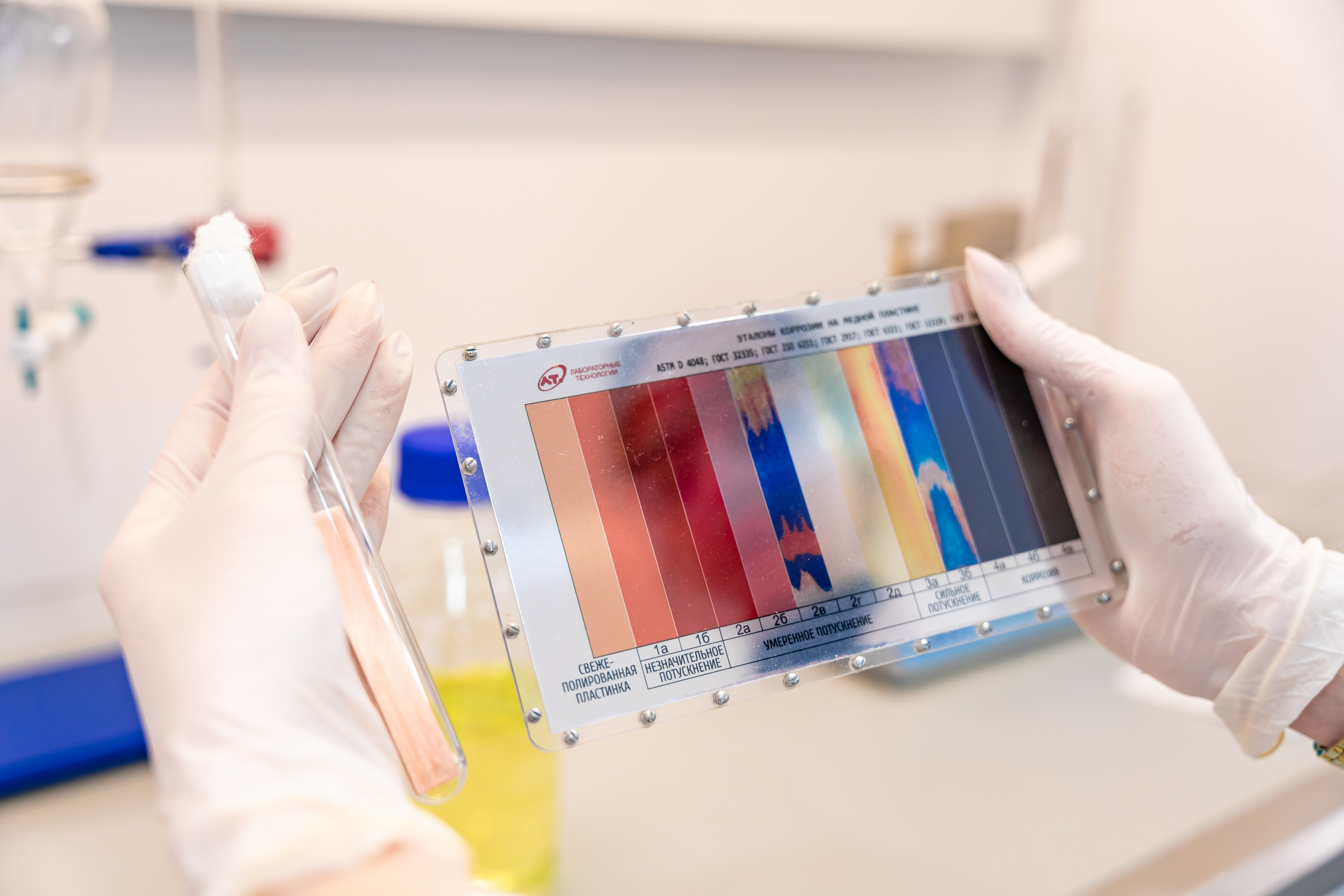

• Corrosive effects – leads to adverse effects on the internal parts of the equipment;
• Content of furan derivatives – provides information on the state of paper insulation;
• Carbon-type composition – the content of aromatic, paraffinic, naphthenic hydrocarbons;
• Determination of elements by inductively coupled plasma atomic emission spectrometry (ICP-AES) – the oil contains the metals because of their presence in the materials of the transformer components;
• Water separability – important performance characteristic;
• Average viscometric degree of polymerization of cellulosic materials – determines the useful life of the transformer, as the insulating paper loses its mechanical properties;
• Methanol and ethanol content – provides useful information for diagnostics and end-of-life transformer estimation;
• Sodium probe – characteristic of the presence of organic acids in transformer oil.
